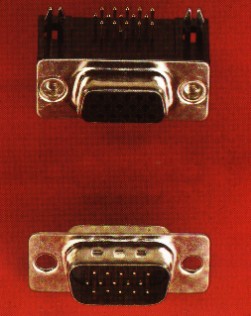

High Density Dee Series

Increased contact density is provided in six industry standard shell sizes providing up to 104 contacts. A choice of four termination styles including crimp are available making this range one of the most versatile.

FEATURES

  • Tinned and dimpled shell as standard - for enhanced electrical continuity and effective EMI/RFI shielding.
  • Threaded inserts - enable quick assembly of mounting hardware to 90° p.c. versions.
  • Solder bucket, straight p.c., 90° p.c. and crimp termination styles - user flexibility.
  • Optional screwlocks and boardlocks fitted to 90° p.c. versions - reduces assembly time.
  • Compatible with Standard Dee range accessories - lower inventory costs.

TECHNICAL DATA

MATERIALS

Shell Tin plated steel
Insulator Glass filled thermoplastic rated UL94V-O
Contact Copper alloy plated hard acid gold

MECHANICAL

Mechanical operations 100
Operating Temperatures -55°C to +105°C

ELECTRICAL

Current
All contacts simultaneously at 70°C Tamb. 3A
Working Voltage 300Vd.c. or a.c. peak
Proof Voltage 1000 Vd.c. or a.c. peak
Contact Resistance 10mohm max.
Insulation Resistance 1000Mohm min.

CONTACT ARRANGEMENT (Viewed from mating face of male connector)


ORDERING INFORMATION

HD

B

X

44

S

N

T
SERIES------------------------------------------------------

|

|

|

|

|

|

|
SHELL SIZE------------------------------------------------

--------

|

|

|

|

|

|
MOUNTING/CRIMP SELECT-----------------------

--------

--------

|

|

|

|

|
CONTACT ARRANGEMENT------------------------

--------

--------

--------

|

|

|

|
CONTACT TYPE------------------------------------------

--------

--------

--------

-------

|

|

|
TERMINATION TYPE----------------------------------

--------

--------

--------

-------

-------

|

|
SHELL FINISH--------------------------------------------

--------

--------

--------

-------

-------

-------

|

SERIES

HD - High Density Dee

SHELL SIZE

E, A, B, C and D

MOUNTING/CRIMP SELECT

No designator - All styles except crimp and 90° p.c.

C - Selects crimp mould without contacts

X - Screwlocks fitted (90° p.c. only)

T - Boardlock fitted (90° p.c. socket only)







CONTACT ARRANGEMENT

9, 26, 44, 62 and 78

CONTACT TYPE

P - Plug

S - Socket

TERMINATION TYPE

No designator - Solder bucket (and crimp when selector code has been used)

OL - Straight p.c.

N - 90° p.c. (board locks fitted as standard socket only)

Shell Finish

T - Tin

TD - Tinned and dimpled (Plug only)


CONTACTS

CONTACT/WIRE GAUGE

MP642 - Pin, 24/28 A.W.G.

MP643 - Socket, 24/28 A.W.G.

METHOD OF SUPPLY

No designator - in packs of 100

R - 10,000 on a reel

PERFORMANCE CODE

05 - Pin, 200 operations

06 - Pin, 50 operations

15 - Socket, 200 operations

16 - Socket, 50 operations
MP642 -R- 06
CONTACT/WIRE GAUGE------

|

|

|
METHOD OF SUPPLY----------

--------

|

|
PERFORMANCE CODE--------

--------

-----

|


TOOLING

Crimp Tool MP600 - D/HD

Insertion/Extraction Tool MP601 - HD
